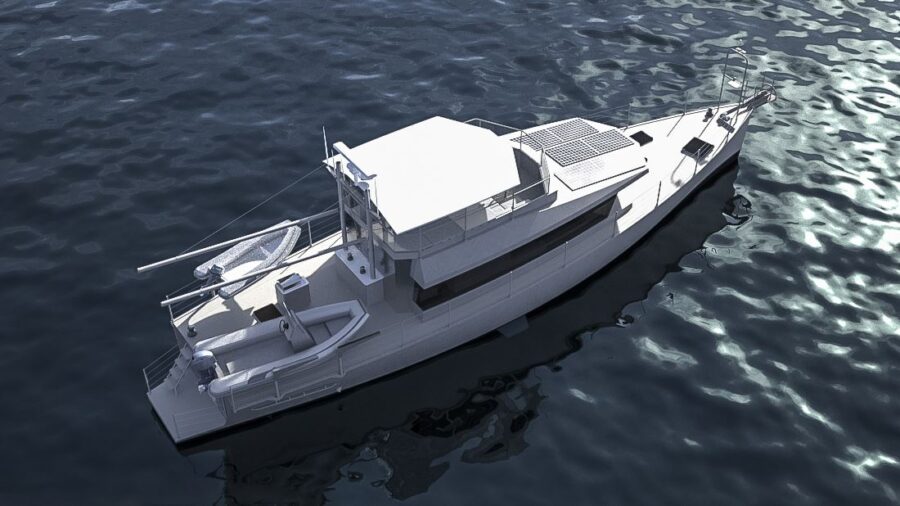

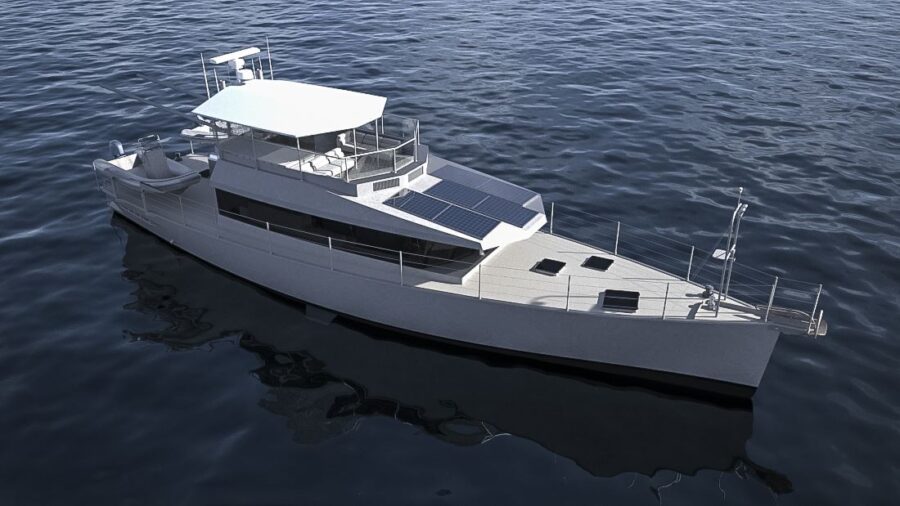

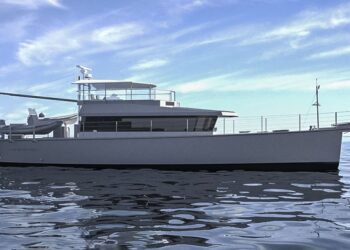

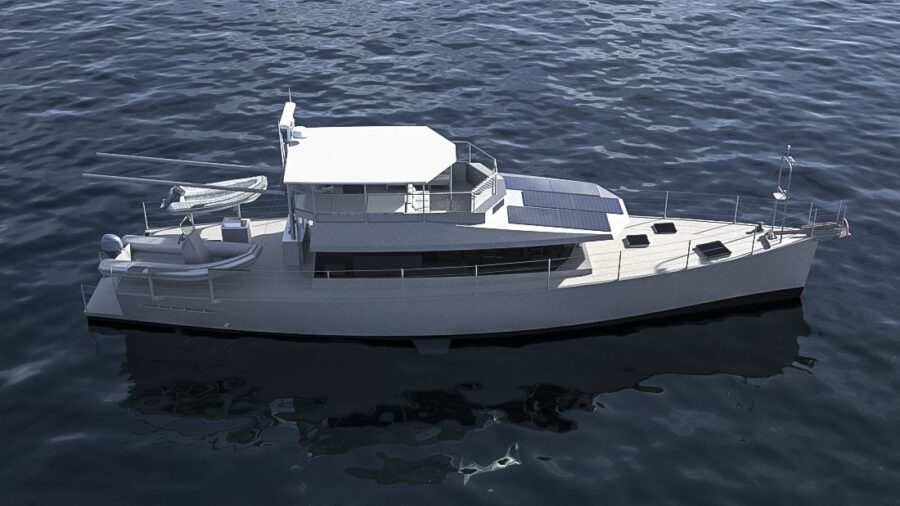

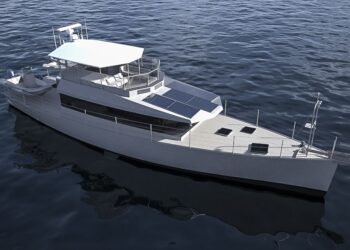

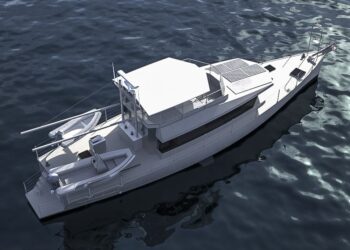

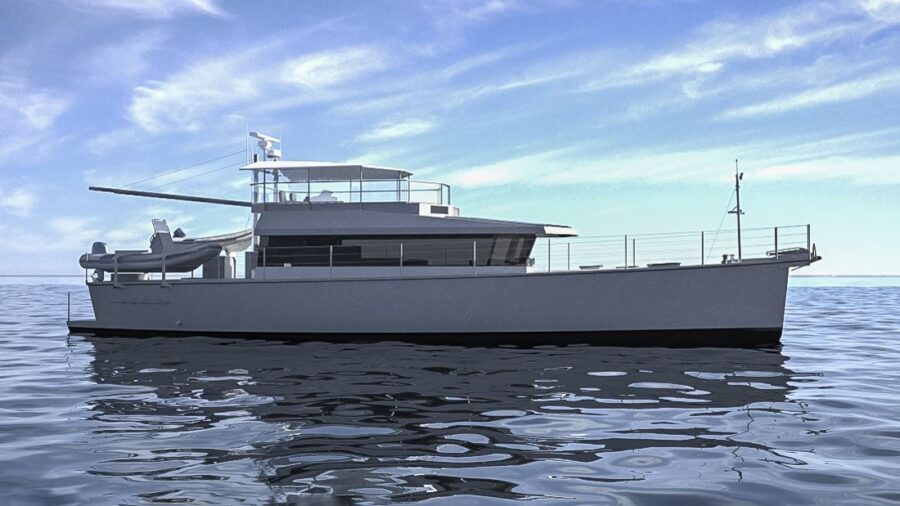

The FPB 70 was the last of the FPB fleet to be designed and to go into build. They were developed for family cruising with guests providing a bridge between the FPB 64 and the larger FPB 78 which has the potential to carry crew, to deliver an owner-driver yacht with flexible guest accommodation.
2 x FPB 70s were delivered and are cruising now.
With the same trademark bare metal good looks as the rest of the fleet, they offer a significant upgrade to the FPB 64 in terms of interior volume and deck space on the aft deck. The basement area beneath the great room soleboards was arranged to provide a very usable space with headroom in some areas to make the stowing of equipment, spares and tools simple. It also provides the opportunity to create walk in wardrobes from the main accommodation in this generous space.
The great room is on the same theme as the rest of the fleet as with the owners’ stateroom which is situated forward.
More volume aft of the great room provides a more spacious area for guest with 2 good cabins and the ability to create a large guest stateroom when cruising long term with another couple.
The matrix deck is more developed than on the FPB 64 and takes much of its design from Steve and Linda Dashew’s experience with the matrix on their FPB 78 COCHISE, it has the option of an enclosure and easy access to the coachroof making it a second saloon both at anchor and at sea.
Twin screw like the FPB 78, they are definitely owner driver motor yachts and are easily handled with a crew of 2 and guests. The engine room is large and with good access to all systems, including transfers, steering and pumps. It also features a practical workshop space which is essential when cruising off grid.
They are able to surf in the correct conditions and to cross oceans reliably providing fast passage times and to provide a smooth ride for their crews to avoid fatigue which is a real risk when cruising short-handed.
|LOD:||78’ / 23.8m|
|LWL:||75.4’ / 23m|
|Official Length (Lloyd’s rules):||70’ / 21.3m|
|Beam (Deck):||18.6’ / 5.66m|
|Extreme Beam (edge of rub rails):||19.0’ / 5.82m|
|Draft-half load Canoe Body:||4.75’ / 1.45m
|Draft-half load Prop Skeg:||5.1’ / 1.55m|
|Air Draft (top of masts-excluding antennas):||21.0’ / 6.4m
|Displacement (3,600 US gallons liquids):||112,000lb / 50 tons|
|Fuel Capacity:||4,000 US Gallons/ 15,100 L|
|Fresh Water Capacity:||2,600 US Gallons / 10,000 L|
|Minimum Range of Positive Stability:||140-degrees (half fuel in onetank, full fresh water tanks|
|Cruising Speed:||11.00 knot
|Top Speed:||12.75 knots|
|Approximate Range:||11.0 knots – 5,000 NM (Note: speeds/ranges are smooth water/clean bottom)
|Main Engine:||2 X John Deere 4054 AFM 85 M1 165HP @ 2300RPM|
|Transmission(s):||ZF280-AI – 2.47 reduction|
|Generator:||13KW/60Hz - 11KW/50Hz, 230V, single phase
